Thermographic pictures / Infrared pictures



Gallery of
thermographic pictures:

various
thermal images


animals

Thermal imaging
of houses


industrial and
scientific use


Thermography:
home page




Here some infrared photographs (these pictures were made with a Goratec S160 thermographic camera and an Impac IVN 770P (~ Mikron M7800) ).

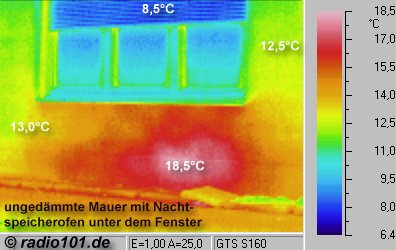

bad thermal insulation: Heating / radiator beneath a window radiates warmth to the outer skin of the building - Thermographic picture - infrared photograph Fenster
Example for bad insulation: Heating / radiator
beneath a window radiates warmth to the outer skin of the building
(around the window there is a projection, thus the warmth dams up a bit)

thermal pictures: Heater - thermographic picture - infrared photograph Window
another example of poor thermal insulation:
Radiator under the window

house: thermal image - click to enlarge) - Kamera: IVN 770P
House

Thermal image, example (click to enlarge)
Weisweiler power plant, near Aachen, Germany
(you see the steam temperature of 32 centigrade)

thermal imaging house photos (click to enlarge)
Thermal imaging of a house
(notice the thermal loss of chimney wall and windows)

Thermographie, Pferd
thermal imaging of a horse

thermal imaging: hot spots on a circuit board
thermal imaging of a circuit board (the hot spots
are in the power supply) - below: identical but another colour scale
thermal imaging of a circuit board
...our eyes see usually this:

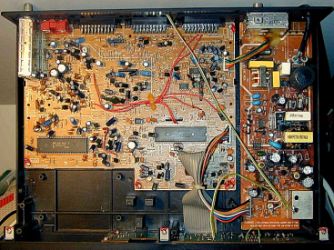

Foto: circuit board notebook (thermographic foto / thermal picture)
Laptop

AC adaptor of a notebook (thermographic picture)
AC adaptor of a notebook

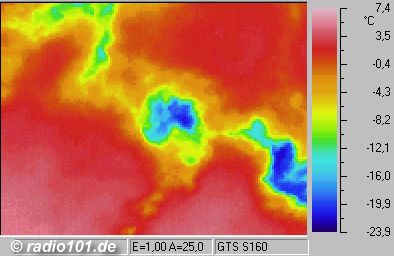

Sky (thermographic foto / thermal picture)
clouded sky

Salsa dancers (thermography / thermal picture)
Salsa-dancer (..more salsa dance pictures: www.salsapictures.com)

salsa dancers (Thermography / thermal picture)
Salsa club in Mönchengladbach, Germany

The multi-colored pictures of thermographic images are generated by software to make even slight temperature differences visible.



hot coffee: Thermography / thermal picture
Thermografic image of a hot cup of coffee, shown in two different color scales / variations.
hot coffee (thermography / thermal picture)

thermal image / infrared picture
thermal leak at a boiler

infrared picture
5l- electric water boiler

Shower, hot water (thermography / thermal picture)
shower with hot water

Cold water (infrared image / thermographic foto / thermal picture)
cold water running into a bath tub

infrared picture / thermographic / thermal picture
cold water (from left) and hot water(from th right) in plumbing fixtures

DSL-modem (thermal picture / thermografic picture)
heat radiation of a DSL-Modem

powerline + trees thermographic / thermal picture
powerline and trees

humid area in a corner - thermographic / thermal picture
lower temperature caused by a humid corner in a flat

feet - (infrared pictures / thermography of a foot
Feet: the tooth colder than the rest ;o)


picture: pipe on a roof (thermographic image) hot pipe on a cold roof thermographic / thermal picture
warm ventilation pipe on a cold roof (2nd image: 3D-view)

Engine (thermographic / thermal picture) Motor (thermographic foto / thermal picture)
Car (VW Golf 3 Diesel): after 1h driving an 30 minutes parking

more thermographic pictures: move ther mose over thre pictures for more information::

thermographic foto / thermal picture: VW Golf PKW, Motor infrared image: thermal image, rotaing furnace / oven steel tank with liquid propane: evaporating propane cools the liquid, so you can see from outside how much is still inside (infrared image) Television Set and videorecorder in use: rising warmth infrared image / thermographic foto / thermal picture: houses in Aachen infrared image / thermographic foto / thermal picture: somebody (that´s me ;o) drinking a cold beverage infrared image, thermography: Budgie; the feathers insulate quite good, so the head region radiates more IR donkey, thermographic picture - infrared photograph ;o) Mehrfamilienhaus: man sieht die Steigleitungen der Heizungen durch die Mauer 'schimmern'- Thermographic picture - infrared photograph: ein Eselchen (..man sieht gut die warme Schnauze und das isolierende Fell ;o) infrared image / thermographic photography / thermal picture: Automotor infra red image / thermographic photography / thermal picture: Houses (im Sommer - Winterimagen kommen ab Dezember) Wärmebilder: Thermographic picture - infrared photograph: Hinterläufe eines Pferdes Leuchtstoffröhre (man sieht deutlich, dass die Zündspule und vor allem die Enden wärmer sind), infra red image (Wärmebild, thermography)
cooking in the kitchen - infra red image / thermography) Thermographic picture - infrared photograph: hot tiles on a balcony in the summertime, partially shadowed Thermographic picture - infrared photograph: hot tiles on a balcony in the summertime, partially shadowed
Thermographic picture - infrared photograph: House in the summertime Thermographic picture - infrared photograph: Haus im Sommer (in der Scheibe spiegelt sich der wesentlich kältere Himmel, daher wird dort scheinbar eine viel niedrigere Temperatur angezeigt) Window: infrared picture / Wärmebild / Thermografische image
infrared image: wall with and without heat insulation - Thermographic picture - infrared photograph wall with and without heat insulation - Thermographic picture - infrared photograph
Wall with and without heat insulation (same sample, but two colour scales)
More pictures of heat insulation of a house here: www.radio101.de/waermedaemmung

Underfloorheating in a bathroom - Thermographic picture - infrared photograph Underfloorheating in a bathroom - Thermographic picture - infrared photograph
Underfloorheating in a bath room

Thermographic picture - infrared photograph: warm foot prints on cold stone tiles, still visible after minutes Thermographic picture - infrared photograph: 1000-Litres - electric boiler with thermal leakage by poor insulation Thermographic picture - infrared photograph des Inn valley near Kufstein / Austria (webcam fotos here: zzz.at/webcams/kufstein - click here)
Thermographic picture - infrared photograph: off-road vehicle Thermographic picture - infrared photograph: off-road car
